ITALIAN SLATE
French covering
The
“French” covering is the cheapest one because it Is the lightest
but there is the disadvantage of a difficult intechangeability of
tiles.
It is different from the “French with hooks” for the fixing: the tiles are fixed by zinc-coated iron nails.

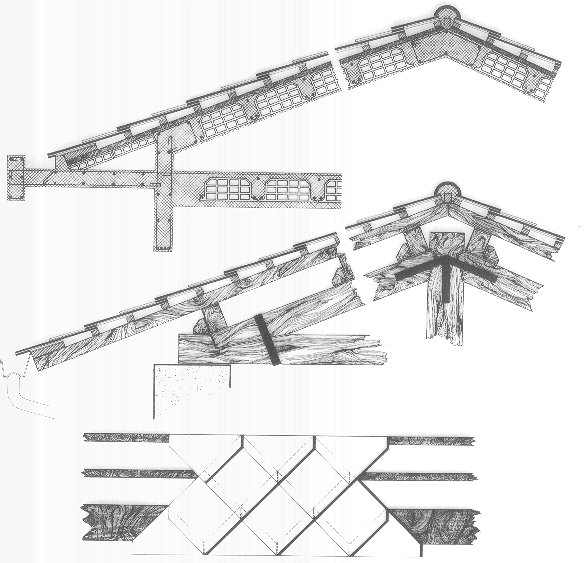

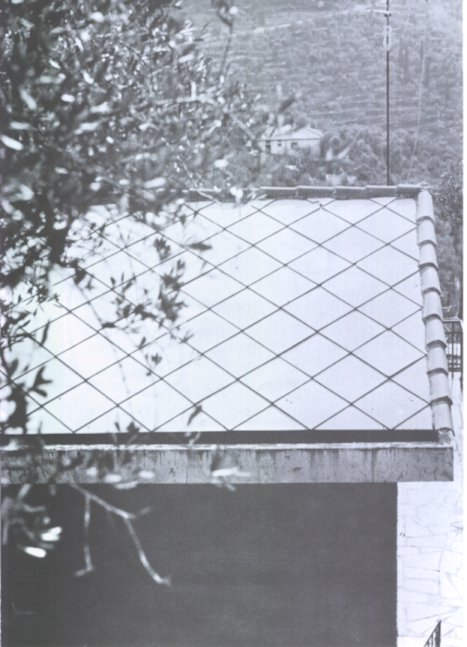

This roof covering, very used in France, is characterized by a vision of diagonal and parallel lines running from the ridge tiles to the eaves and crossing with each other.
Measurements (cm.) |
Thickness in (mm.) |
Minimum slope % |
Tiles per Mq |
Kg. per Mq. |
|
40x40 |
10 – 12 |
35 |
13 |
65 |
|
40x40 |
10 – 12 |
40 |
11 |
55 |
|
40x40 |
10 – 12 |
45 |
9 |
47 |
|
30x30 |
10 – 12 |
50 |
22 |
55 |
Fixing: zinc-coated nails
Laying system: on wooden listel , on boarding or concrete filling
Increasing the overlapping you can get slighter slope.
