ITALIAN SLATE
French with hooks
The

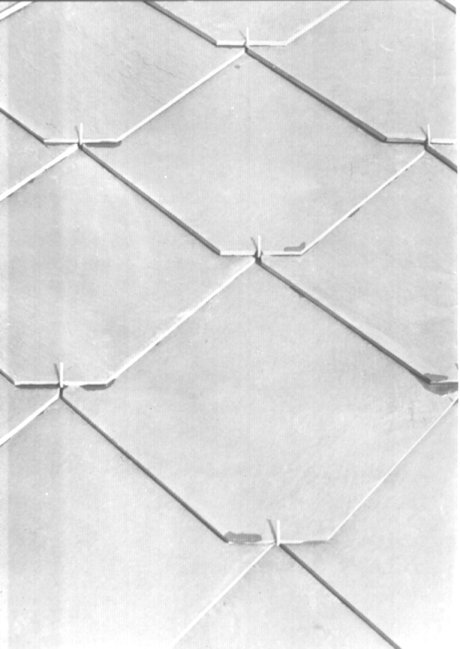

“French with hooks” covering produces a drawing with lines running
diagonally (V shaped) from the ridge tiles to the eaves.
This is one of the cheapest roof coverings because of the reduced overlapping and the lower quantity of tiles required with advantage for the weight.
It’s easy to interchange tiles, compared to “French” covering there is more overlapping and more resistance even if the weight is almost the same.
Measurements (cm.) |
Thickness in (mm.) |
Minimum slope % |
Tiles per Mq |
Kg. per Mq. |
|
40x40 |
10 – 12 |
40 |
12 |
55 |
|
30x30 |
10 – 12 |
50 |
25 |
60 |
Fixing system: stainless steel or copper hooks, or nails
Laying system: on wooden listel (4x3 cm.)
Increasing the overlapping you can get slighter slope.
